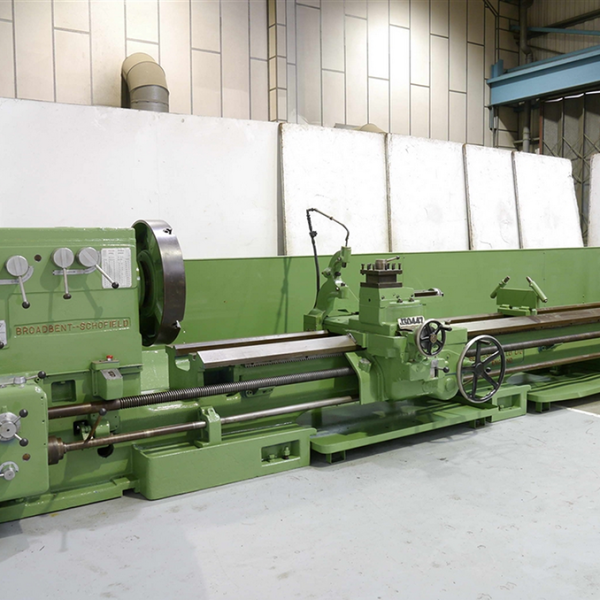

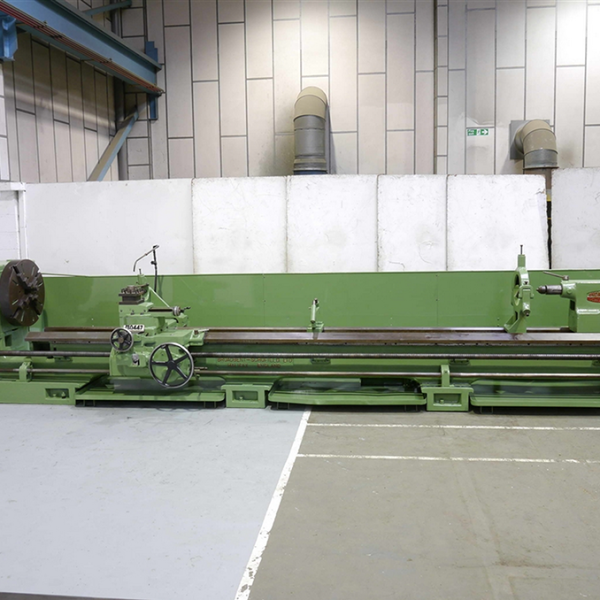

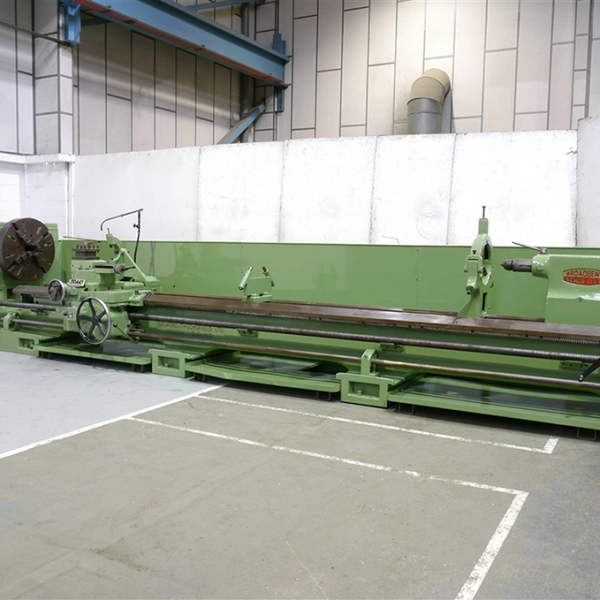

BROADBENT-SCHOFIELD 16.1/2″ X 20′ (419MM X 6096MM) GAP BED CENTRE LATHE
Add to wishlist
Product added!
Add to wishlist
The product is already in the wishlist!
Add to wishlist
SKU:
A1005
.
Category:
Machine Tools
.
Description
Product Description
Serial No.
8283/68
Height of centres
16.1/2″ (419MM)
Between centres
20′ (6096MM)
Swing over bed
33″ (838MM)
Swing over cross slide
26″ (660MM)
Swing in gap
52″ (1321MM)
Spindle speeds
7-500 RPM
Spindle bore
4.1/2″ (115MM)
Tail Stock
NO. 5 MORSE TAPER
Quick change gearbox
IMPERIAL/METRIC
Gap piece casting
11″ (279MM)
Gap in front of face plate
17″ (432MM)
Bed type
DOUBLE VEE
Input
380/420/3/50 AC 15 HP APPROX
Pitch of lead screw
2 TPI

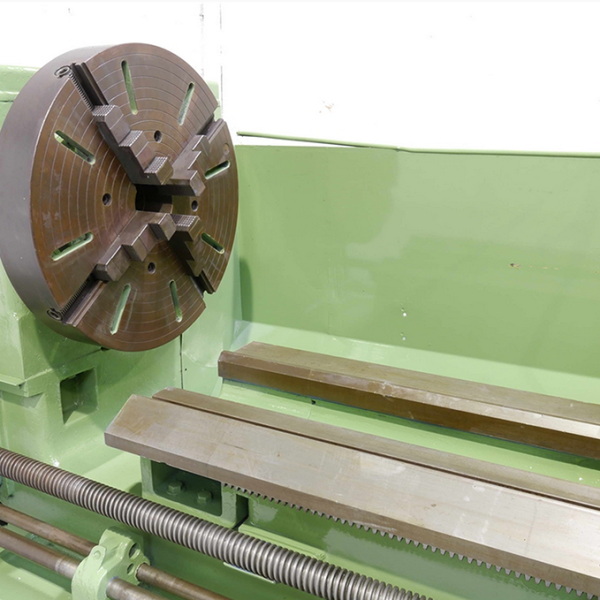

4 jaw chuck
30″ (762MM)

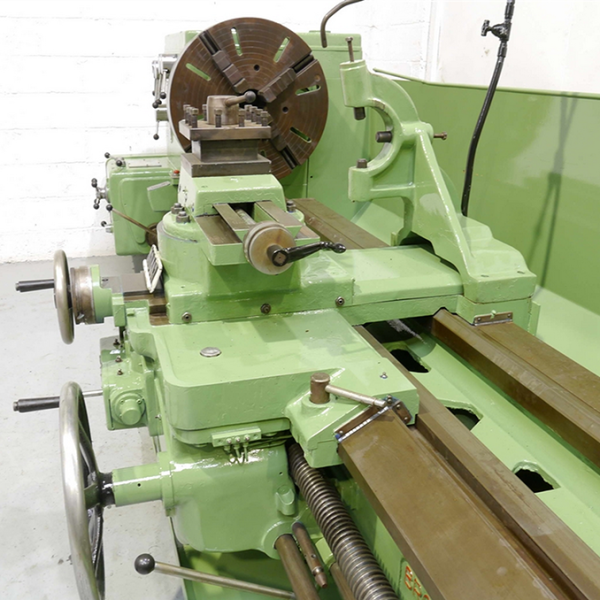

Tool post
4 WAY
Dials
IMPERIAL
Equipment

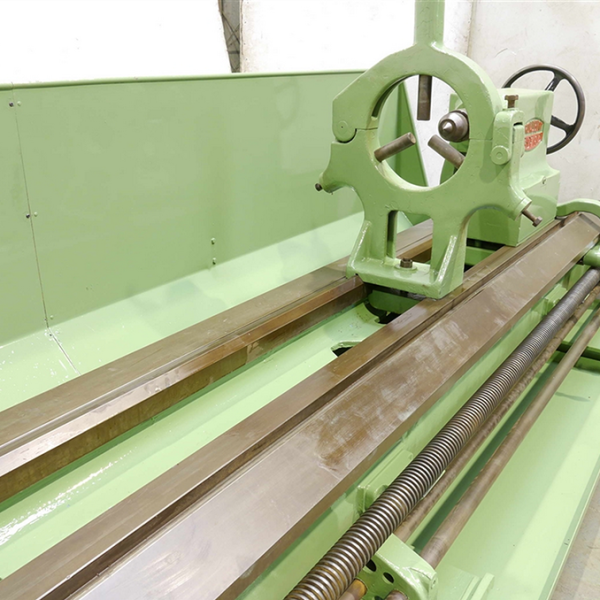

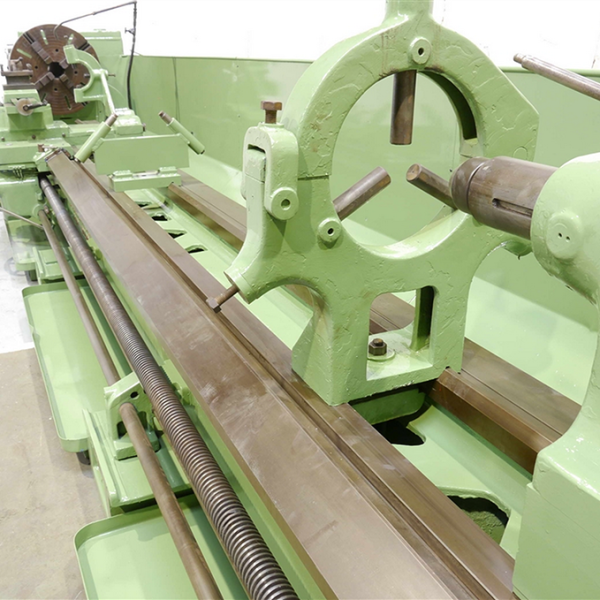

30″ FACE PLATE & 54″ FACE PLATE WITH 4 X BOLT ON JAWS. FIXED & TRAVELLING STEADIES
Dimensions
LENGTH 29′ (8.84M), WIDTH 5’4″ (1.63M), HEIGHT 5’2″ (1.57M)
Nett weight
11 TONS (11,240 KGS)
Location
Leicester
Price
Contact Us
