Please note that this press has many spare parts which are as follows :-

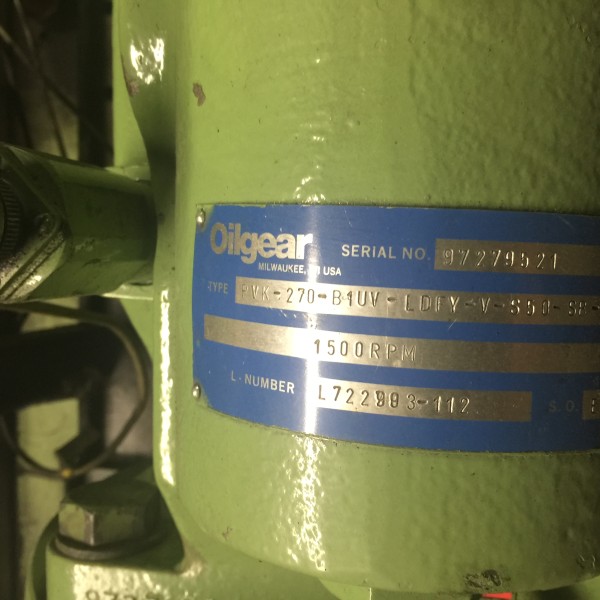

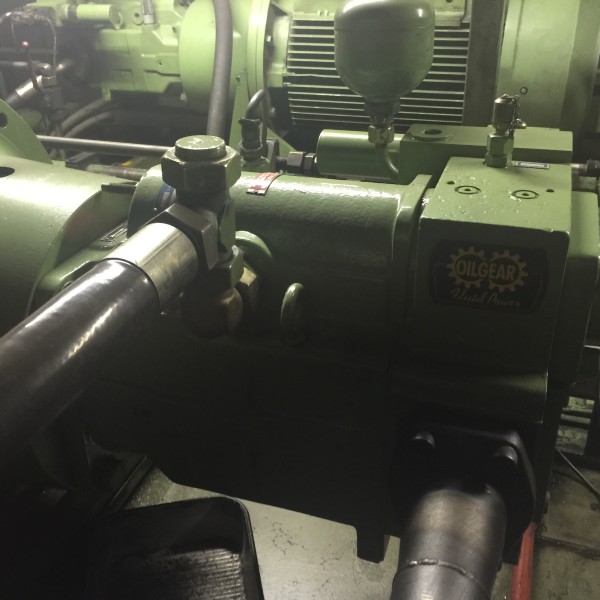

(1) HD Pump Oilgear – Serial Number PVK-270B2-UV | (1) Oil control pump – Serial Number PVK 270 B1 UV |
---|---|
(2) Press pumps – Serial Number PVWH-04-LSAY | (1) Feed pump |
(1) Centrifugal filter/cooler pump | (2) 280mm diameter induction coils |
(2) 230mm diameter induction coils | (3) 280mm stems |
(2) 230mm stems | (3) 280mm containers |
(1) 230mm containers | (2) Spare pull back rams |
Various amounts of valves and seals | Various electrical parts / spares |
Video of water cooling system click this link
Video of Bar stretcher click this link
Video of Billet heater click this link
Video of Press working click this link

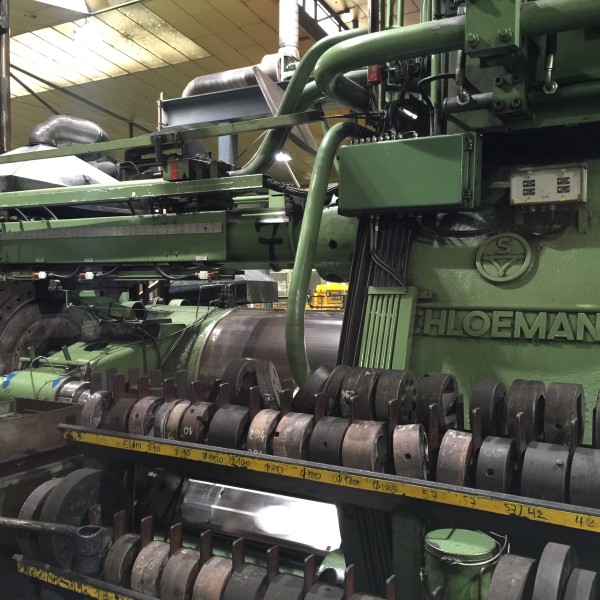

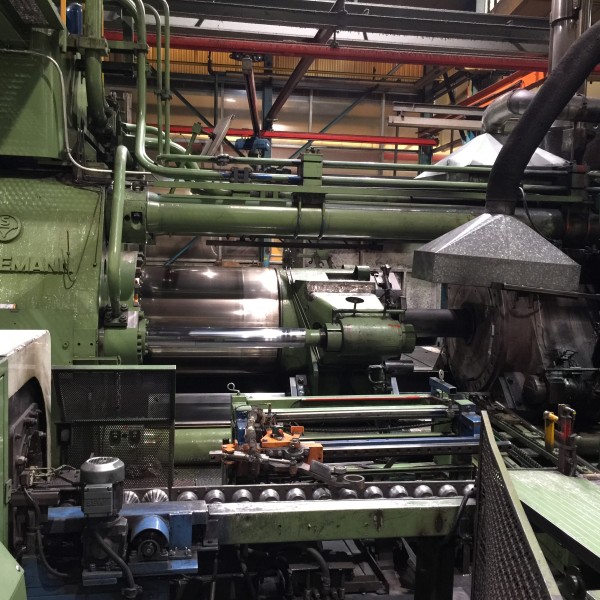

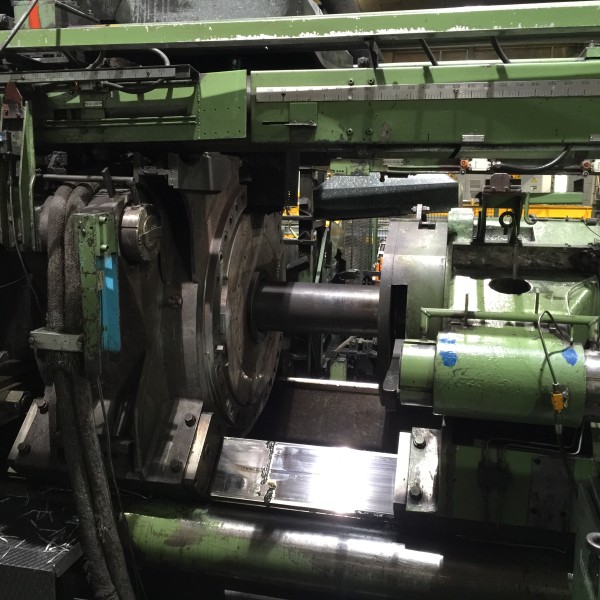

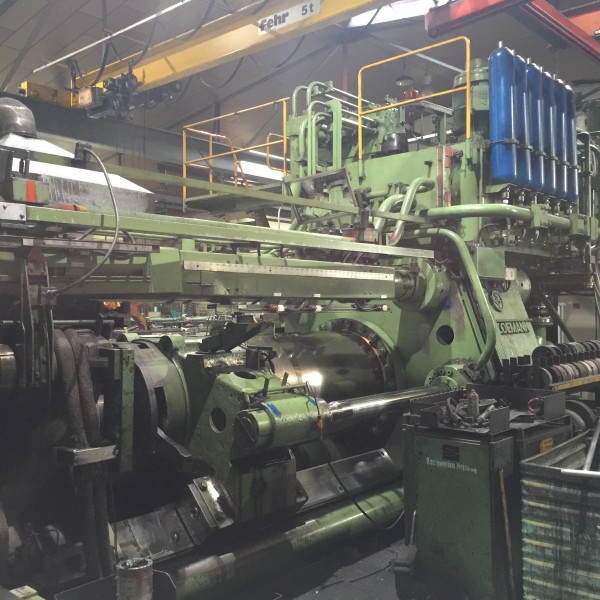

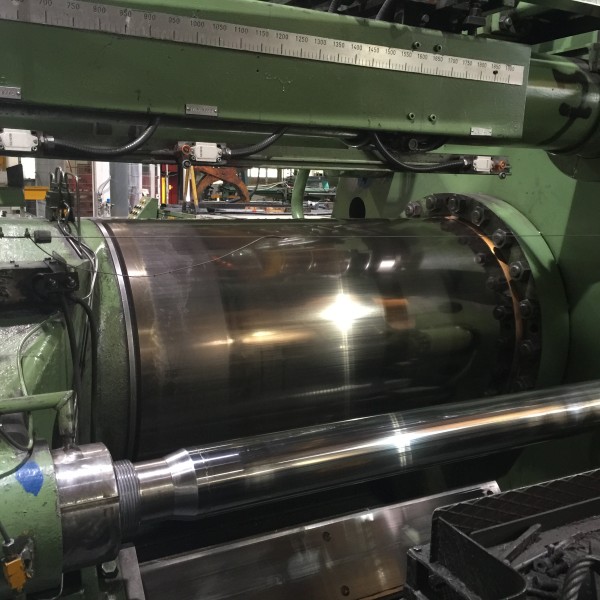

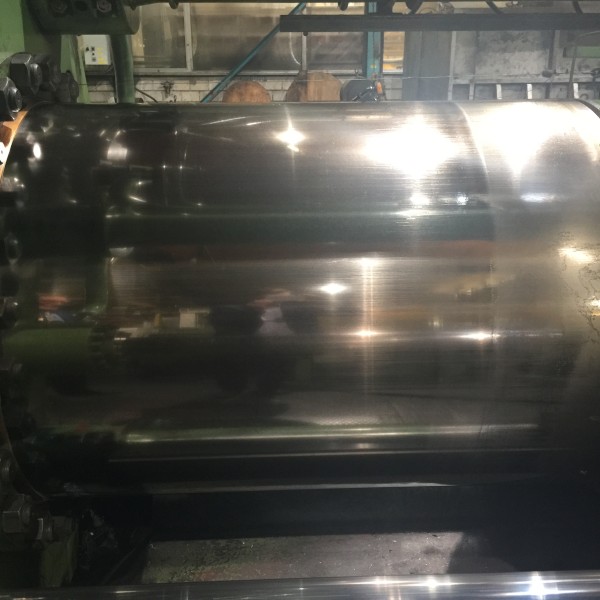

Make | Schloemann |
---|---|
Tonnage | 2,500 |
Billet Size | 11inch x 850mm Max |
Oil Tank | 8000ltr Max Capsity |
Ram Stroke | 1900mm |

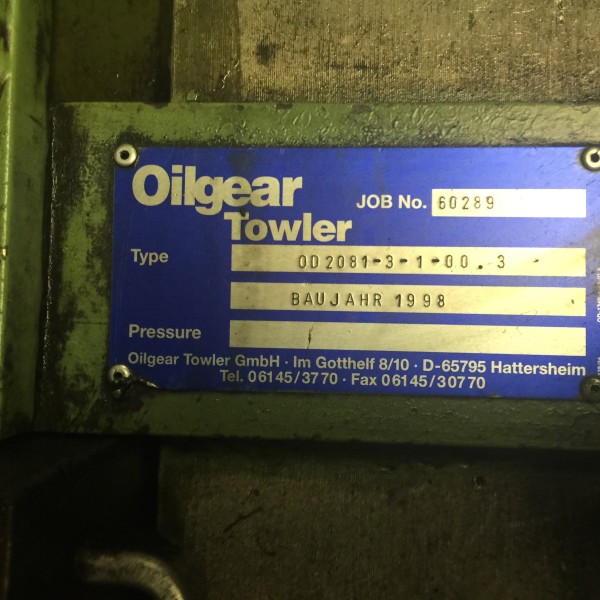

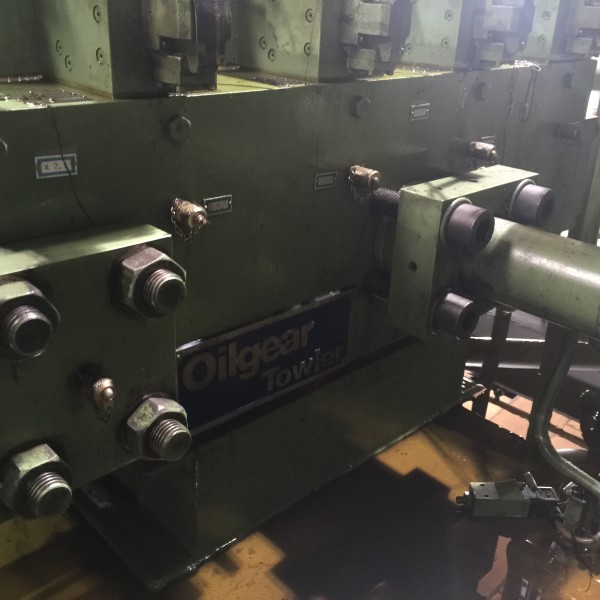

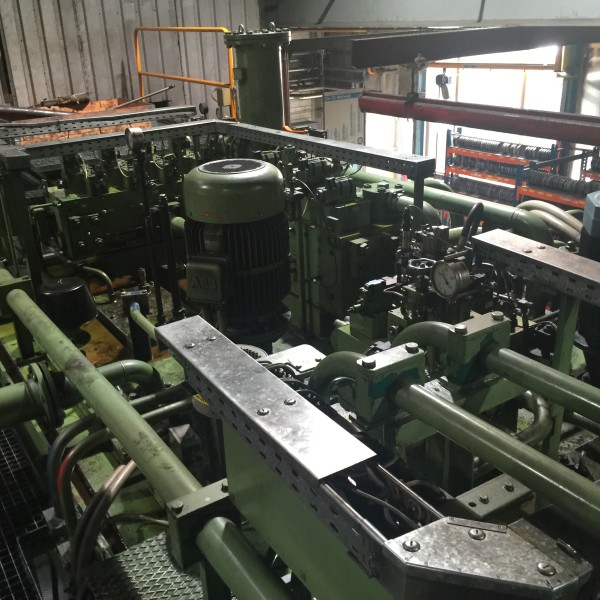

Motors / Valve Block | Oilgear & Towler |
Platen | New in 2002 |
Tie Bars | 4 |

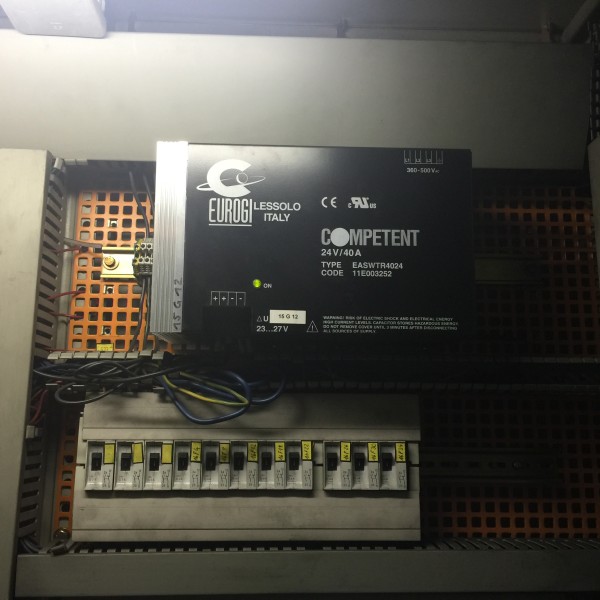

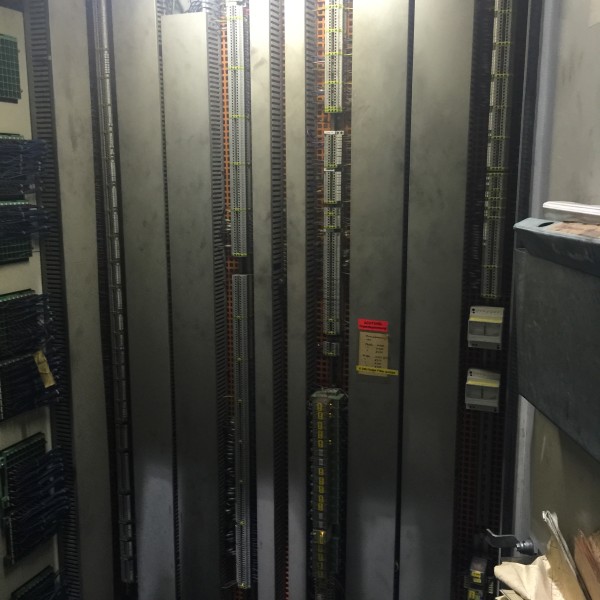

Electrical | |

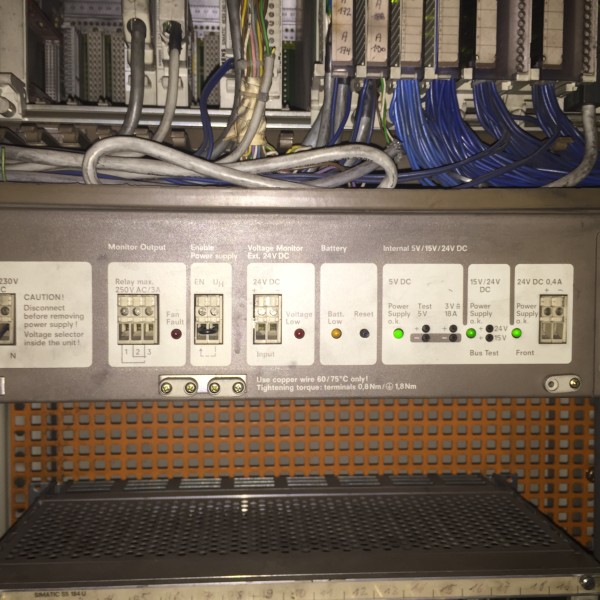

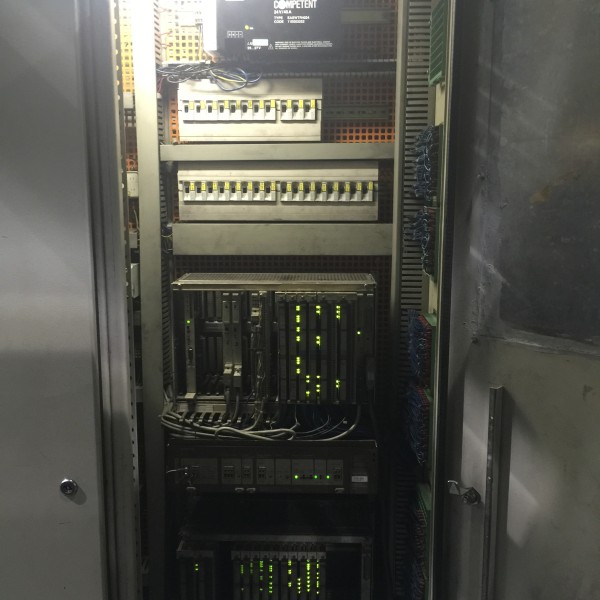

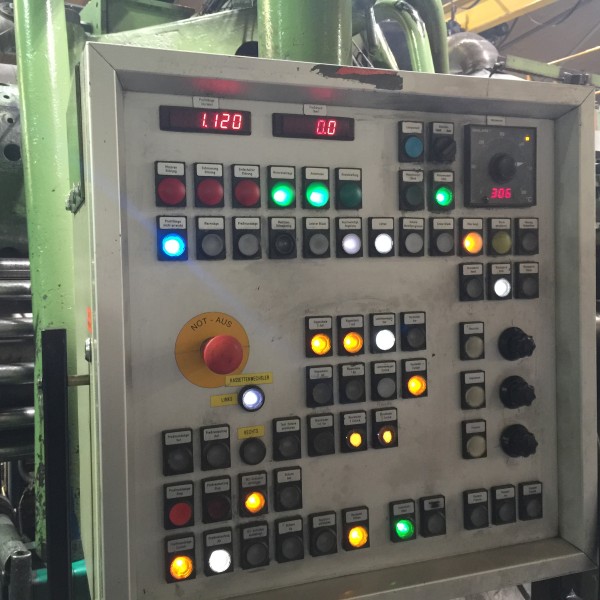

Controls | Siemens S5 PLC (Brand New / Upgraded in 1985) |
Motors | The motors are run by ABB electrics |

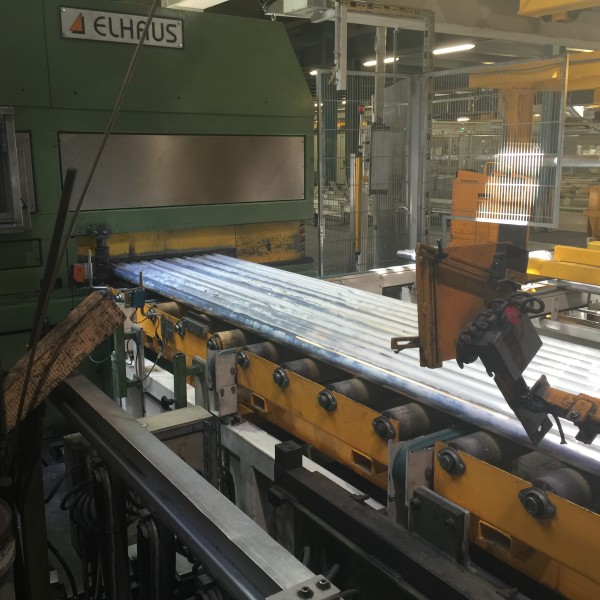

Cut to Length Saw | |
Make | Elhaus |
Year of Manifacture | 2001 |
Blade Diameter | 750mm |
Cutting Width / Table Width | 830mm |
Profile Height | 185mm Max |
Systems | Siemens Simatic Multi Panel (full touch screen) |

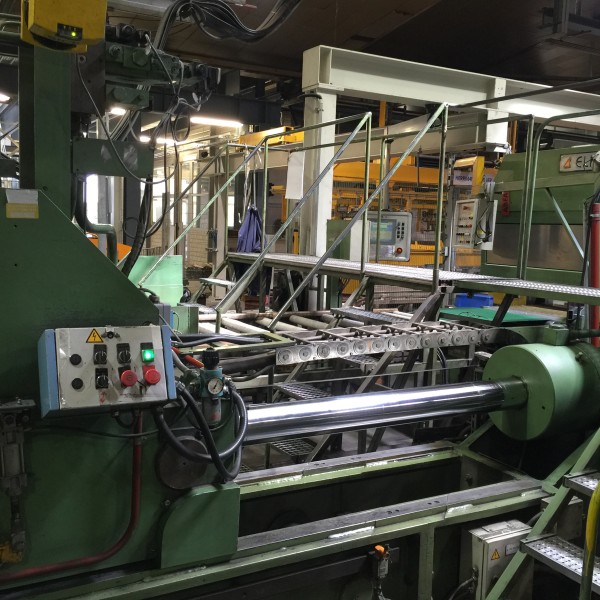

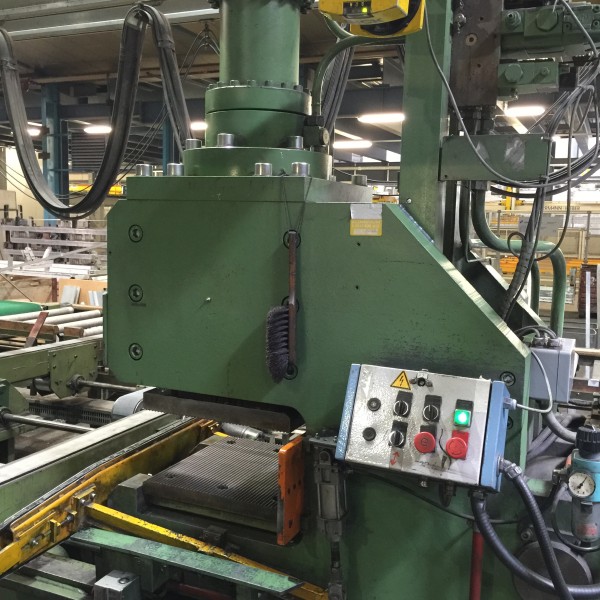

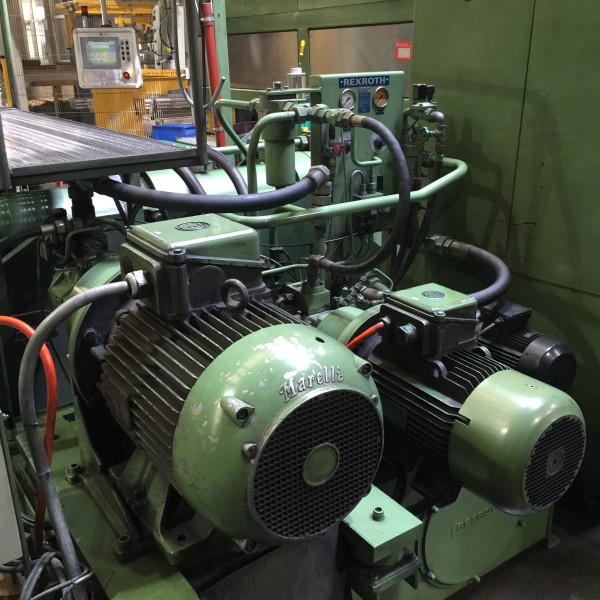

Stretcher | |
Make | Omav |
Year of Manifacture | 1985 (Upgraded in 1997) |
Pumps | Rexroth |
Motors | Marelli |
Gripper Pressure | 40 tons |
Stretching Length | 1500mm (Min) |
Stretching Length | 52 meters (Max) |
Stretching Pressure | 100 tons |
Cooling System | |
Water Bosh | |
Litre per min | 387ltr |
Pressure | 2/3 bar |
Over Head Air Cooling | |
Pressure | 5/7 bar |
Billet Heater | |
Make | Banyard Metalheat Ltd |
Heating System | Electrical Induction |
Power | 1000 Kw |
Heating Supply | 380V 50 Hz 3 Phase |
Auxiliary Supply | 380V 50 Hz 3 Phase |

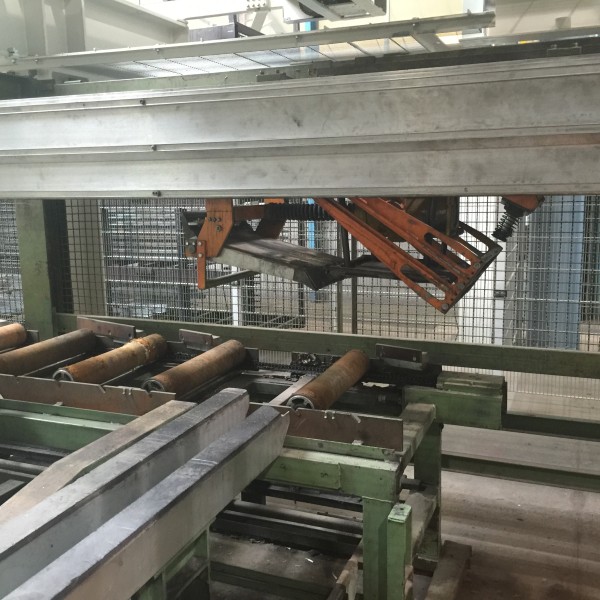

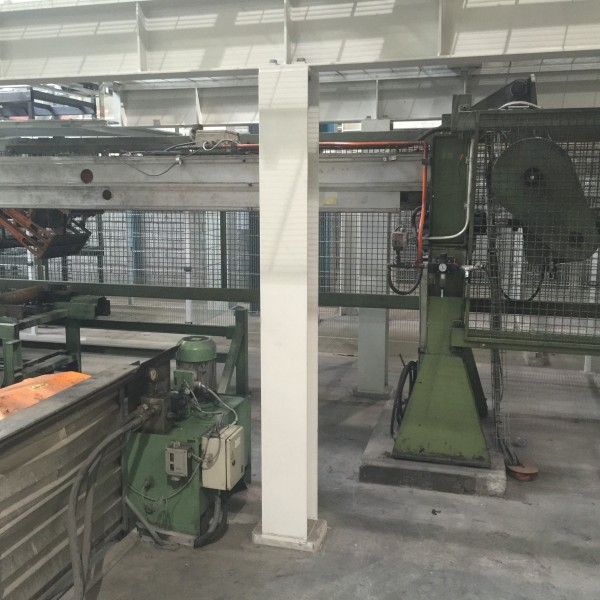

Puller | |
Make | Omav |
Year of Manifacture | 1985 |
Length | 52 meters |

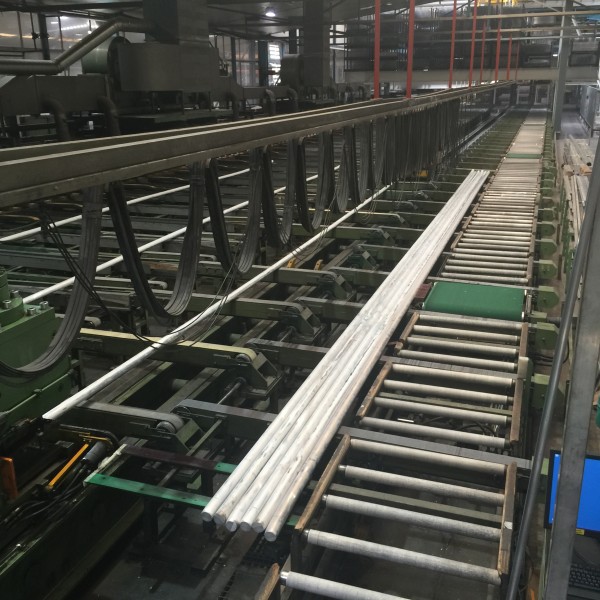

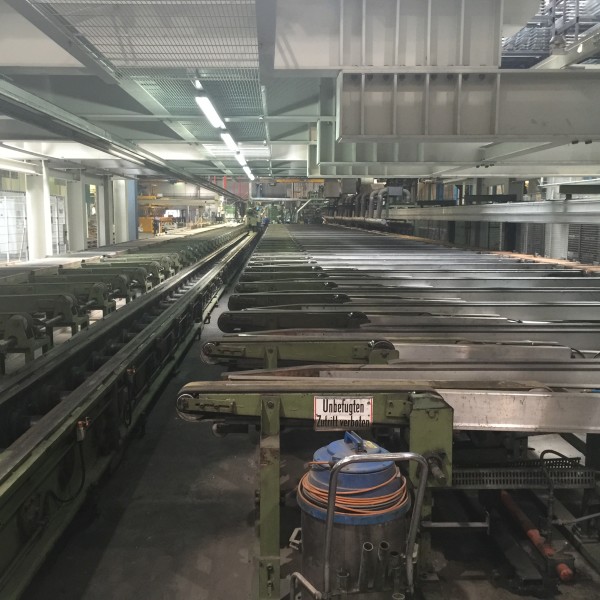

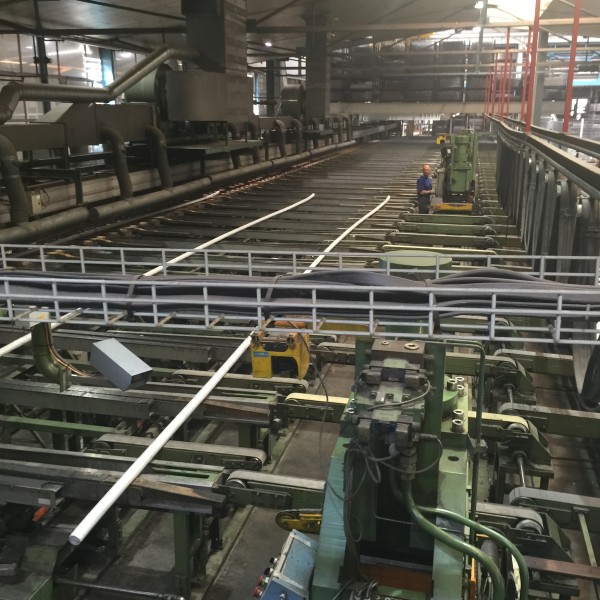

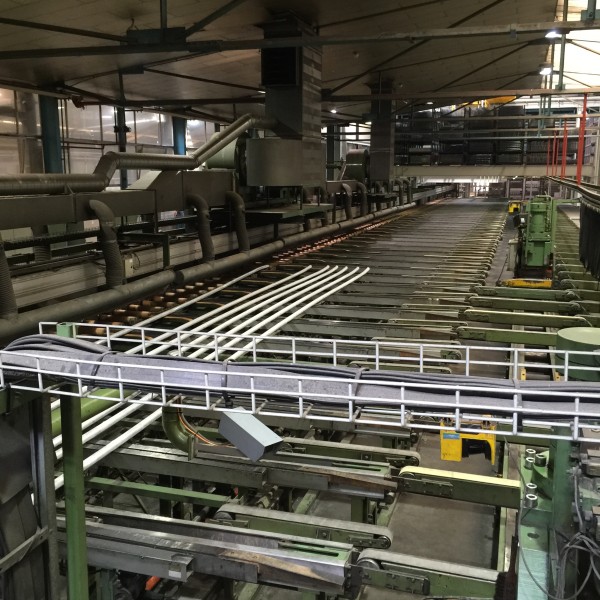

Run Out System | |
Type | Belt |
Length | 52 meters |
Die Heater | |
Make | Auburtin (French) |
Power Supply | Electrical |

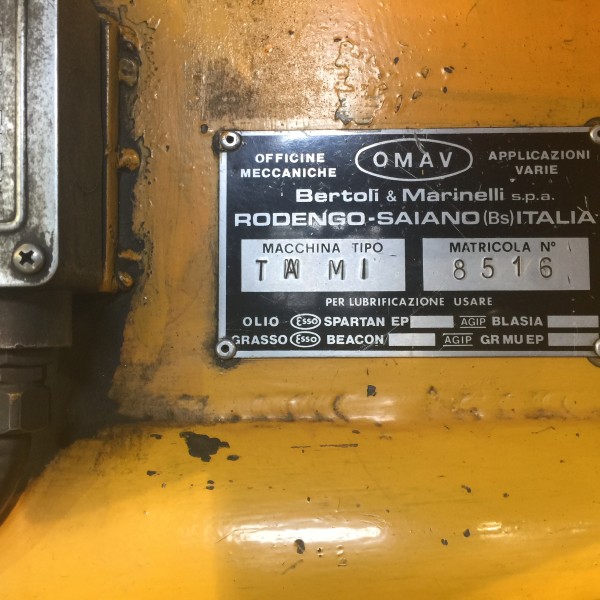

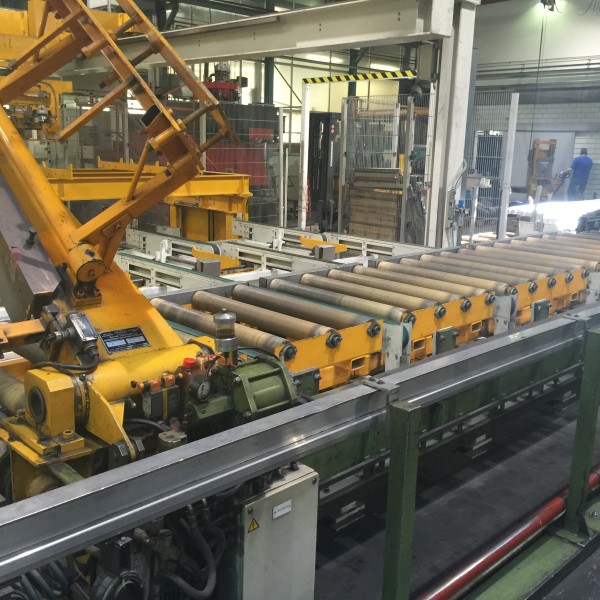

Cut to Length Stop Gauge | |
Make | Omav |
Year of Manufacture | 1985 |
Adjustable | 7 meters |
Width | 830 |
